Differential Pressure Transmitters Switches Gauges:

Industrial; Marine; Hydraulic; Engines; HVAC; Pumping
Data Page MHDS Müller

MHDS
Heavy Duty Industrial Differential Pressure Transmitter with 100:1 turndown. Pressure ranges 0..+75 mbar to 420 Bar. Static pressure +30 to +420 Bar. 4-20mA with superimposed HART-protocol. Optional value limit contacts PROFIBUS/ EtherCat/ Modbus/ PWM. Accuracy 0.1% to 0.2% FS dependant on range. LCD display with backlighting 5 digit 7 segment or 8 digit 14 segments resolution 2%. Diecast aluminium housing to IP65. Media Temperature -40..+104 Celsius, process connection ¼-18 npt, all wetted parts Stainless Steel.
Data Page MKDS Müller

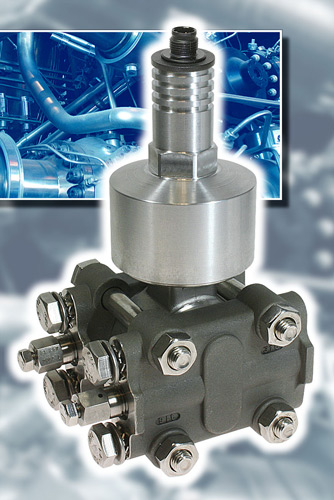

MKDS
Compact Differential Pressure Transmitter with turndown. Pressure ranges 0..+75 mbar to +420 Bar. Static pressure +30..+420 Bar. 4-20mA with superimposed HART-protocol. Accuracy 0.1% to 0.2% FS dependant on range. 2 x ¼”-18 npt (F) process connections. IP65 protection.  Various electrical connections available. All wetted parts Stainless Steel.
